Roth Cornets
The Roth cornet was originally manufactured by
Ohio Band Instrument
Co., F.A. Reynolds' student instrument manufacturing
division. Advertisements for Roth instruments in
general exist from
1940; the earliest recorded Roth cornet is
SN 22877 (~1941). After the corporate sale to
Scherl & Roth in 1946, Reynolds continued to produce
Roth instruments under the Ohio Band name until 1950,
then briefly under the "F.A Reynolds" label until
they were rebranded as "Roth-Reynolds" instruments circa
1952.
The Roth "Tone Tempered" model
was introduced around the same time that Reynolds launched the new
Emperor line (1947). Both models featured brass construction with
a nickel-silver bell flare. The Roth
variant appears to have been discontinued in the early 1950s.
Model History |
Specifications
|
1936-1950 | Ohio Band Instrument Co. (Cleveland)
|
|
|
Model TBD |
Shepherd's crook design |
Bore: TBD"
| Bell:
TBD" brass bell |
Body:
brass; nickel-silver bracing |
Valves: TBD
| Finish:
TBD
Note: This model has a different
main tuning slide wrap style than the later examples below.
Note the additional crook to enter from the front on
the left side of the third valve, where the later horns
have a valve entry point on the right side. The design change
is associated with the sale of Ohio Band from Foster
Reynolds to Scherl & Roth (1946).
|
|
|
Model TBD |
Shepherd's crook design |
Bore: TBD"
| Bell:
TBD" brass bell |
Body:
brass; nickel-silver bracing |
Valves: TBD
| Finish:
TBD
|
|
|
Model TBD "Tone
Tempered" |
Shepherd's crook design |
Bore: TBD"
| Bell:
TBD" brass bell with nickel-silver
bell flare |
Body:
brass; nickel-silver bracing |
Valves: TBD
| Finish:
TBD
|
|
1950-1952 | F.A. Reynolds (Cleveland)
|
|
|
Model TBD (F.A. Reynolds) |
Bore: TBD"
| Bell: 4¾"
brass bell |
Body:
brass; nickel-silver bracing |
Valves: TBD
| Finish:
TBD
|
|
1952-1961 | Roth-Reynolds (Cleveland)
|
|
|

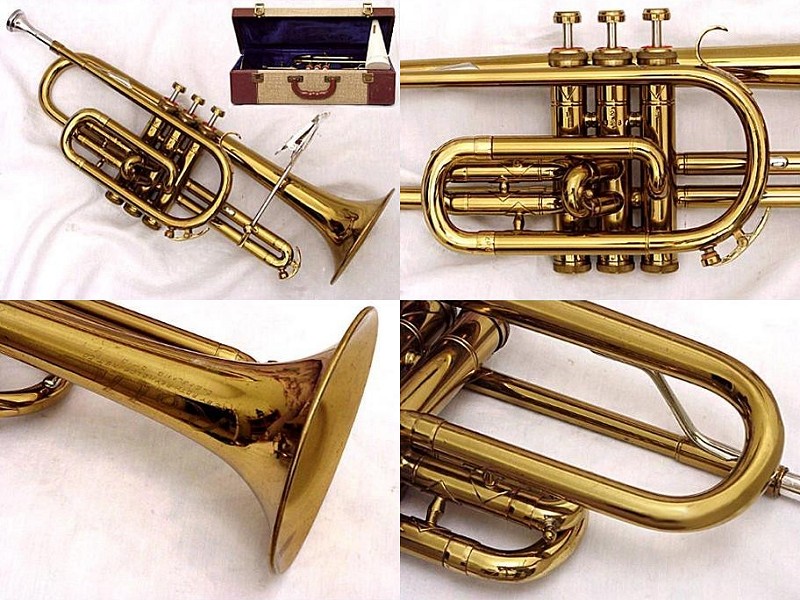

Model 310 |
Bore: .458"
| Bell: 4¾"
brass bell |
Body:
brass; nickel-silver bracing |
Valves:
hand-lapped, nickel-silver pistons |
Finish:
clear lacquer; optional silverplate
with bright bell or gold bell finish

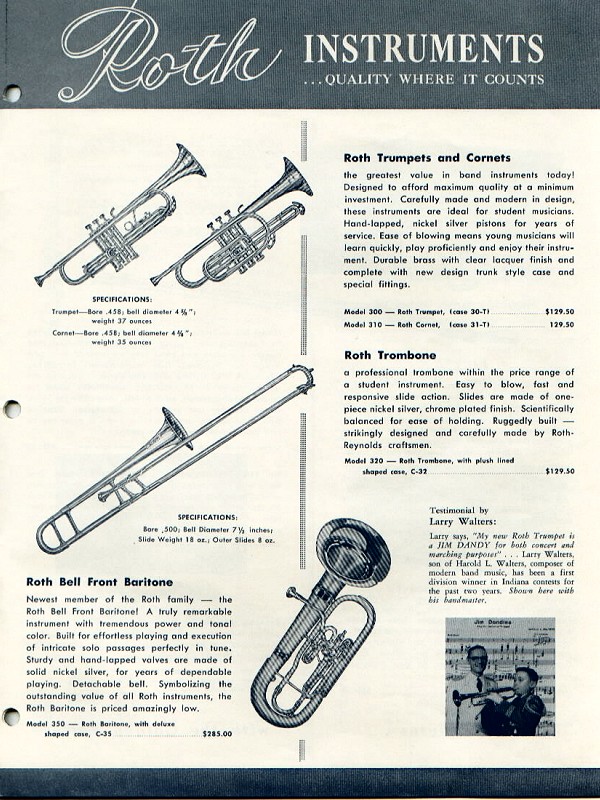

1953: "Roth
Trumpets and Cornets
- the greatest value in band instruments today!
Designed to guarantee maximum quality at a minimum
investment. Carefully made and modern in design,
this model is ideal for student musicians.
Hand-lapped, nickel silver pistons for years of
service. Ease of blowing means young musicians
will learn quickly, play proficiently and enoy
their instrument. Durable brass with clear lacquer
finish and complete with new design trunk style
case and special fittings."
1958, 1959: "Roth is
the cornet of quality most widely used in schools
today. It embodies all of the fine workmanship of
our craftsmen yet is extemely low priced. Special
bore and taper designed for easy blowing so the
student will learn quickly and thoroughly enjoy
his instrument. Hand-lapped nickel silver pistons,
durable construction, beautiful lacquer finish.
Complete with Gladstone case and special
fittings."
|
|
|

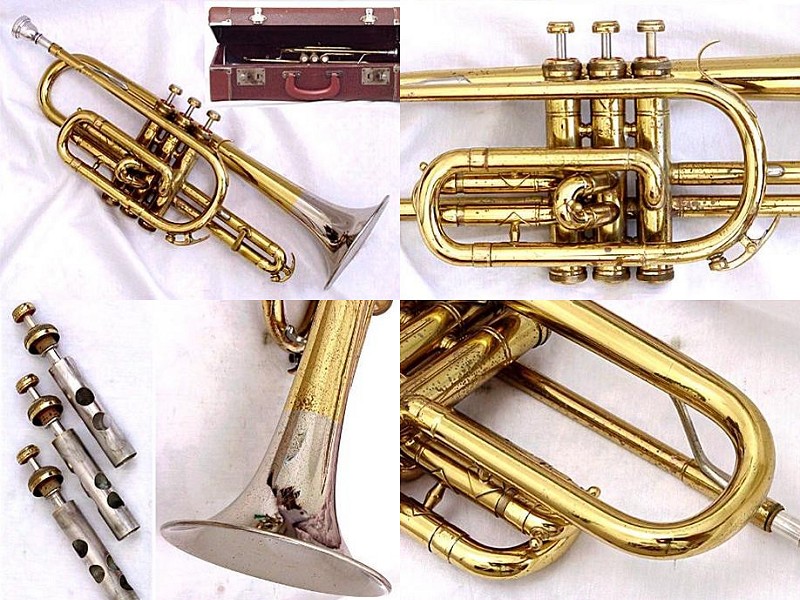

Model TBD |
Bore: TBD |
Bell: TBD"
brass bell with
nickel-silver
bell flare |
Body:
brass; nickel-silver bracing |
Valves: TBD
| Finish:
TBD
|
|
1961-1963 | F.A. Reynolds/RMC (Cleveland)
|
|
|

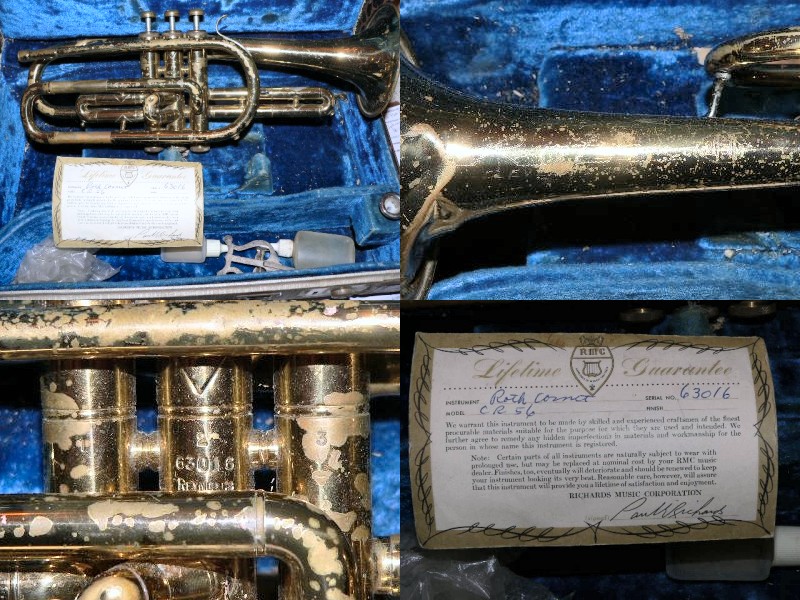

Model CR-56
| Specs TBD (same as Model 310?)
|
|
|
|
|
|
|
